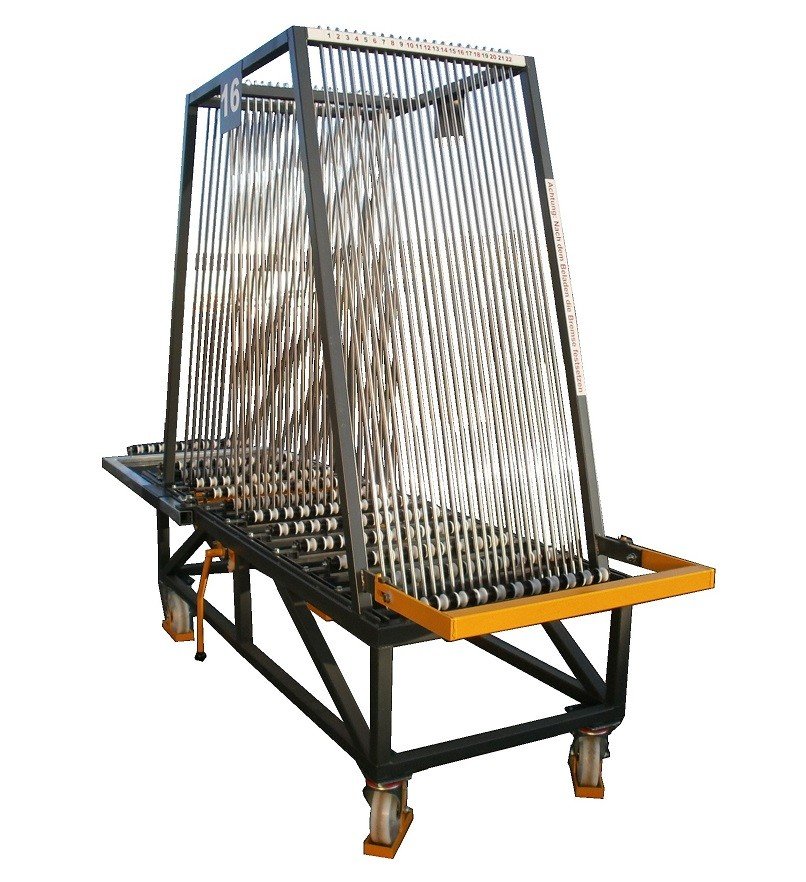

Trolley for glass sorting WT-FS-03

Description:

  • Vertical working surface covered with PCV hose
  • Horizontal working surface consist from 12 rows of polyamide rolls
  • Regulated external roll for inserting the glass into the trolley
  • Blockade
  • 4 polyamide wheels Ø200 mm (2 fixed, 2 torsional with brake)
  • Finishing: painting RAL colors
  • Modification possibility

Technical details



Total length: 2000-2980 mm
Width: 920 mm
Height: 2170 mm
Compartments: 22 x 15 mm
Working height: 1415 mm
Loading capacity: 2000 kg
