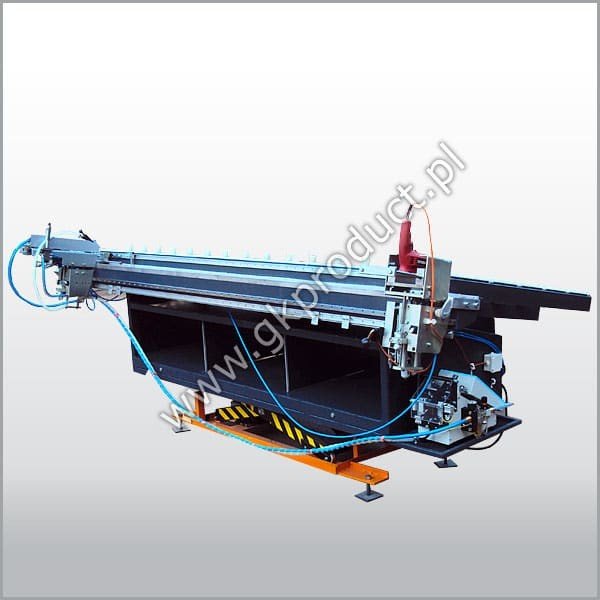

Table for fixing the metal fittings SUO-01

Description:

  • solid construction of the table guarantees its stability
  • hardware measurement module
  • pneumatic clamp of the wing
  • screwing unit
  • automatic screw feed into screwdriving unit
  • linear movement of the units in profiled slideway
  • worktop height regulation available in range of 850 - 950 mm; inclination control up to 15°
  • worktop lined with polyamide slat
  • set of rotational wing hooks
  • Spray painting finish (RAL palette colors available)



Equipment options:

  • drill for hinges
  • hydraulic lifting module – allows to adjust the worktop to the operato



Technical details



Total length: 3000 mm
Width of the worktop:  1300 mm
Total Width: 2000 mm
Height: 850 - 950 mm
Weight: 480 kg
