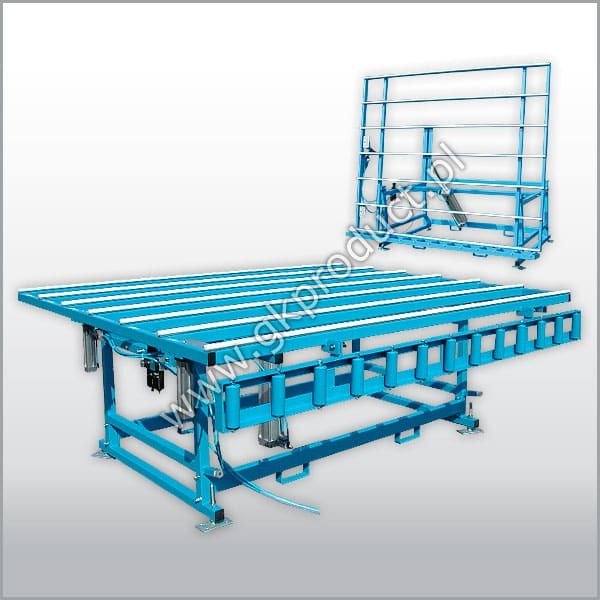

Tilted table SRU-02

Description:

  • The table designed for assembly jobs. Thanks to the pneumatic horizontal-vertical orientation change and rolling feeder, this table enables efficient transport of the elements. Fitted with repealing roller conveyor that gives comfort of work.
  • Repeal of pneumatic worktop 0°-80°
  • Pneumatic clamps enable safe and reliable fastening of the element (optional)
  • A solid construction ensure high stability
  • Working surface covered with sliding profile
  • Spray painting finish (RAL palette colors available)



Technical details



Length: 2500 mm
Working width: 2000 mm
Height in horizontal orientation: 850-1000 mm
Height in vertical orientation: 2300 mm
Working width of rolling feeder: 150 mm
